MUCKI Lifting-Tipping Devices
The MUCKI Lifting-Tipping Devices from JOEST are versatile two-column systems designed for the automated and safe emptying of a wide range of containers – from small bins to large bulk containers. Their particularly robust design and optimized tipping kinematics ensure precise material transfer even with high load capacities. Combined with a modular design and adaptable container pick-up, they are ideally suited for use in a wide variety of processing environments – making them our perfect all-rounder.
Optional features such as low-dust tipping or reduced drop heights allow the Lifting-Tipping Devices to be precisely tailored to specific requirements and material characteristics.
Whether it’s automated loading via AGV, manual loading using a pallet truck, or integration into conveyor systems – JOEST develops the right Lifting-Tipping solution for every task: ergonomic, durable, and process-reliable.
FUNcTION
The MUCKI Lifting-Tipping Device from JOEST is designed for the automated lifting and controlled emptying of containers, bins, or special vessels in processing plants.

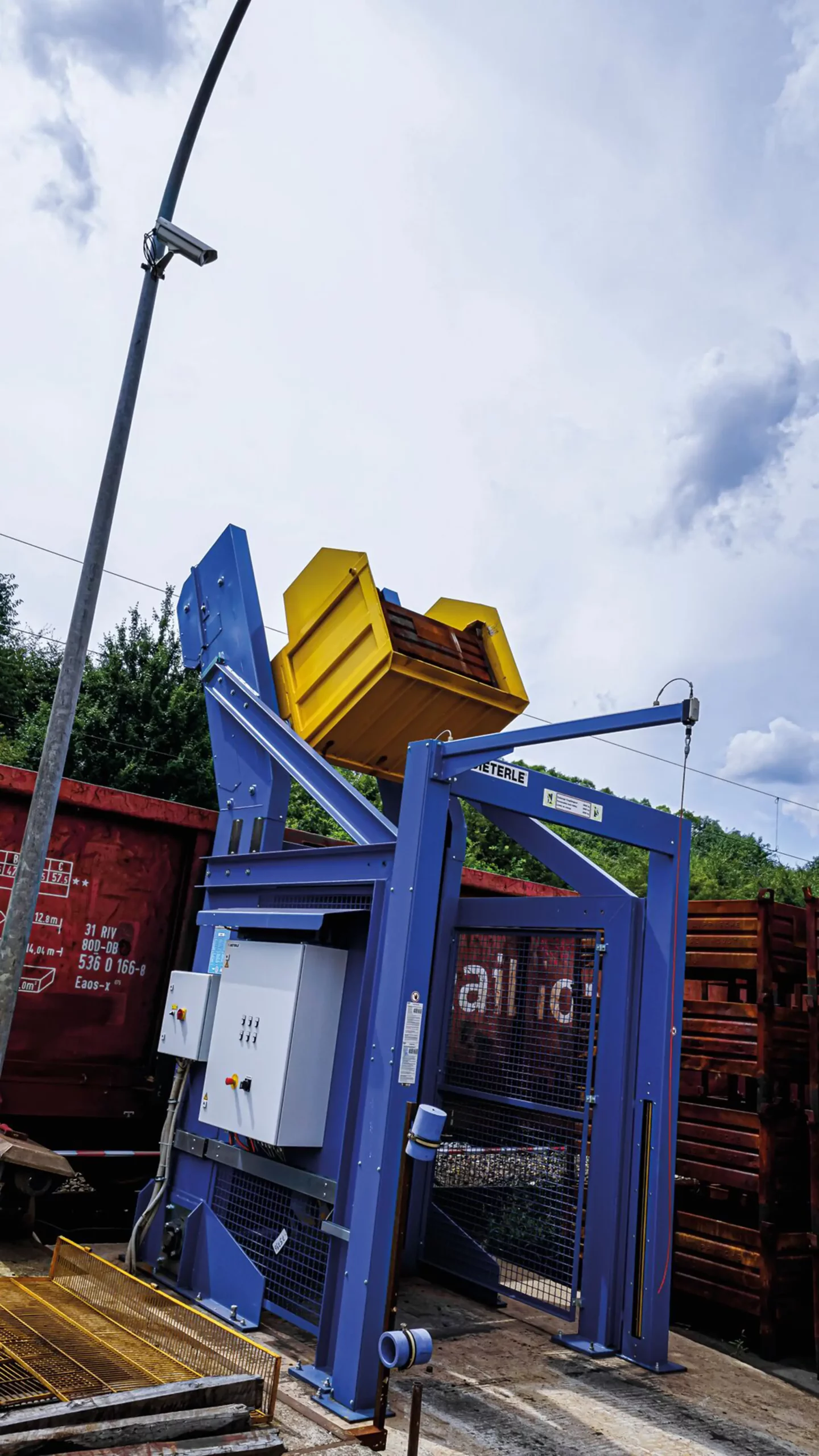

A specially engineered two-column structure lifts the container to be emptied via a safety pick-up system and raises it vertically to the desired tipping height. At the heart of the system is the proven, directly driven MUCKI tipping kinematics, which ensure smooth and powerful motion throughout the entire tipping cycle – with maximum stability and high repeat accuracy.
Depending on the application, the tipping angle can be adjusted variably – typically between 135° and 180° – allowing complete discharge of bulk materials. Tipping is performed by a powerful electromechanical drive unit, selected according to container weight, material characteristics, and operating environment.
Particular attention is given to the safe positioning and locking of the container, which is achieved using active or passive securing mechanisms. Additional options such as low-dust configurations, hopper attachments, or discharge flaps enable gentle and optimized material flow – even for sensitive bulk materials.
Control can be managed either by the customer’s system or a JOEST-provided solution. Communication with process control systems or feeding systems such as AGVs (Automated Guided Vehicles), AMRs (Autonomous Mobile Robots), or other driverless transport systems is fully supported. Depending on the configuration, the entire operation can be implemented as fully automated, semi-automated, or manual.
Product details
- Load capacities up to 3,000 kg
- Tipping heights from 1,200 mm to 12,000 mm
- Tipping angles up to 180° (fixed or variable)
- Electromechanical drive
- Custom container pick-ups (e.g. mesh boxes, bins)
- Robust design
Options
- Hoppers or enclosed transfers for dusty materials
- Reduced drop height and gentle material handling
- Automatic or manual control
- Integration into AGV, conveyor, or safety cell systems
- Available in stainless steel or with ATEX option
Fields of Application
JOEST Lifting-Tipping Devices are used wherever bulk materials, components, or solids need to be transferred to downstream equipment in a process-reliable and automated manner.
Thanks to their modular design, high load capacity, and wide range of configuration options, they are suitable for a variety of industries – from bulk material handling in recycling applications to process feeding in the food and chemical industries.
Plastic regrind, Metal scrap, Scrap tire parts, Fluff, Shredder feeding, Granulator feeding, Container loading, Chip handling applications
Aggregates , Glass fiber handling
Low-dust tipping of powdery or free-flowing bulk materials in drums or special containers, feeding of dryers, rubber, natural rubber, EPS granules
Feeding of melting furnaces, loading of charging vehicles, additives
Feeding of washing centrifuges and oil-removal centrifuges
Discharging of bulk containers
Feeding of dough kneaders, low-dust tipping of powdery or free-flowing bulk materials, freeze-dried herb
Tobacco
Feeding of cold and heat treatment systems, such as annealing basket systems or furnace belt systems
Feeding of surface treatment systems, such as electroplating or phosphating lines
Discharging of octabins
Feeding of industrial washing machines, use in large-scale laundries
Equipment Options
For optimal integration into your processes, MUCKI lifting-tipping devices offer a wide range of equipment options – flexibly configurable, process-oriented, and safe.
Load capacities up to 3,000 kg
Depending on the version, the system can reliably lift and discharge both light containers and heavy bulk bins with loads of up to 3,000 kg.
Variable tipping heights
The units can be configured for different discharge heights between 1,200 mm and 12,000 mm – from low bunker feeding to loading of high-level processing equipment.
Tipping angles up to 180 degrees
Depending on product and process, fixed or adjustable tipping angles can be implemented – ensuring complete, precise emptying without residue.
Customizable container pick-up
Whether mesh boxes, containers, plastic or special bins – the pick-up system is precisely adapted to your container size and locking mechanism.
Open hoppers or closed systems
For dusty or sensitive materials, closed hoppers, covers, or transfer points can be integrated.
Drop height reduction for gentle material handling
Controlled tilting or integrated damping systems ensure especially gentle and low-noise material discharge – tailored to the product.
Automated or manual control
The system can be operated via control panel, PLC, or integrated into higher-level control systems – optionally with AGV or sensor interface.
PLC control with visualization
Process-reliable and user-friendly – optionally with interface connections for system automation.
Integration into conveyor systems and safety zones
The units can be integrated into existing lines – including conveyors, safety enclosures, or access protection in accordance with the Machinery Directive.
Stainless steel design and ATEX option for special applications
For hygiene-critical or potentially explosive environments, stainless steel versions and ATEX-certified configurations are available.
Advantages
Whether for heavy containers, large tipping heights, or sensitive materials – MUCKI lifting-tipping devices offers smart technology, flexible equipment options, and reliable functionality. The combination of load capacity, ergonomics, and modularity makes it the ideal solution for efficient and safe container handling across a wide range of industries.
Your Material. Our Test Center.
Before a solution reaches you, it undergoes rigorous testing in our in-house technical center. Here, we test your materials under real-world conditions and develop optimal, practice-oriented concepts.
