The Helical Casting Cooler is a specially designed spiral conveyor that uses vibration feeder technology to simultaneously cool and vertically convey materials. The conveyor belt has a slight incline and moves product up a spiral tower.

Helical casting coolers combine the advantages of gentle, vertical movement of materials using vibration feeder technology on a spiral conveyor while applying thermal treatment, and they can be driven by a variety of cooling agents. Product is moved using the micro throwing movement, a well-known technique in vibration feeding technology that can be individually set up for each application and machine type through the adjustment of swing, frequency and articulation (throw angle). Helical casting coolers are available for contact, convective and combined heat transfer methods.

With contact heat transfer – without direct contact between the cooling agent and the product – the double-bed design leads to uniform heat transfer over the entire width of the tower.  The design of the cooling plate, with welded platform panels, produces high levels of mechanical stability. This eliminates the normal reduction in sheet thickness in the bending radius required by otherwise standard pressure on the spiral tower. Cooling water supply from the cooling water distributor is also adjusted to suit the application when delivered.

For convective heat transfer, the cooling agent – with direct contact between the cooling medium and the product – is introduced directly to the product and either flows over or through the product.

The drive bracket has two variable unbalance vibrators in the pivot angles. This, combined with adjustable swing and adjustable operation with a frequency converter allows for optimal machine operation. Helical coolers can be delivered in a variety of materials including normal or stainless steels, or a combination thereof. Depending on the application, the helical cooler can be equipped with a static or oscillating enclosure as an option.

Spiral conveyors with fluid bed area available

Static or oscillating enclosure possible

Multiple degrees of freedom to change operating parameters

Special sizes and models available

Models in normal steel and stainless steel

Use of cooling water and cooling brine possible

ATEX model

Spiral diameter: standard 320 mm to 1,400 mm as well as special custom diameters

Conveyor height: depending on diameter, up to 9,000 mm

Drive output: up to 2 x 6 kW

Conveyor output: standard up to approx. 5 m3/h, for synthetic granulate it depends on cooling requirements

Heat transfer media: cooling water, cooling brine, ambient air, cold air

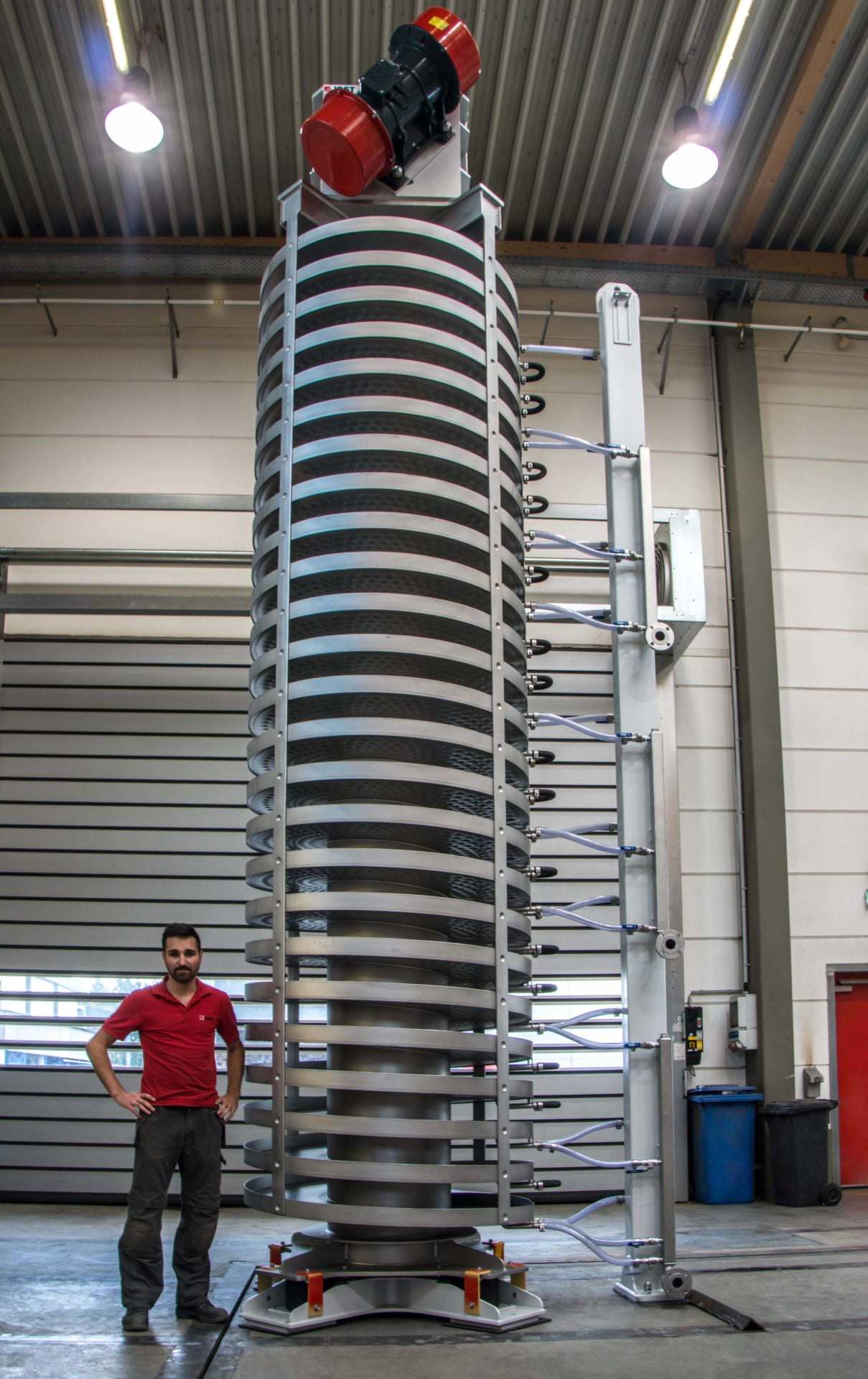

Spiral Elevator October 2015

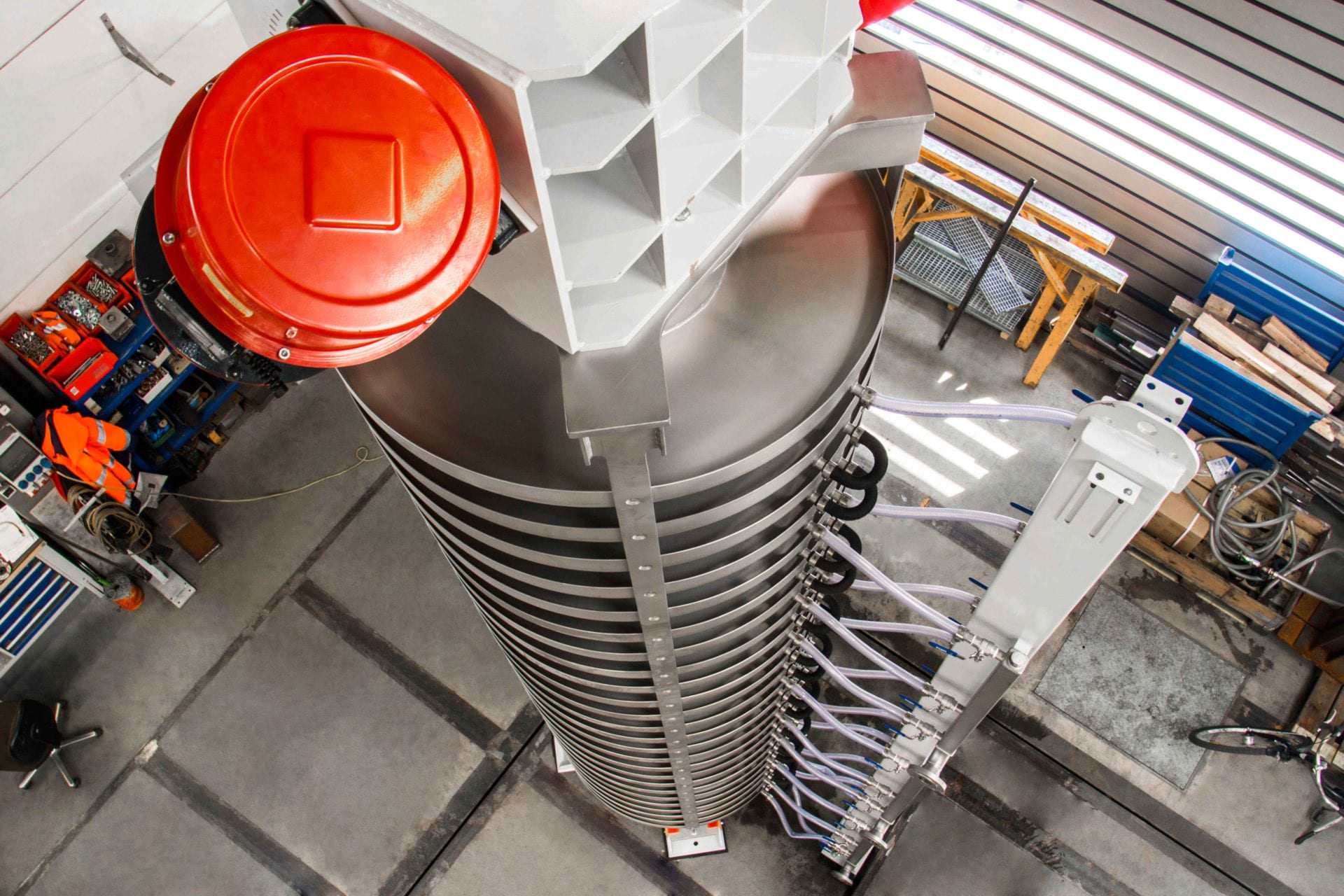

Spiral Elevator Example 2

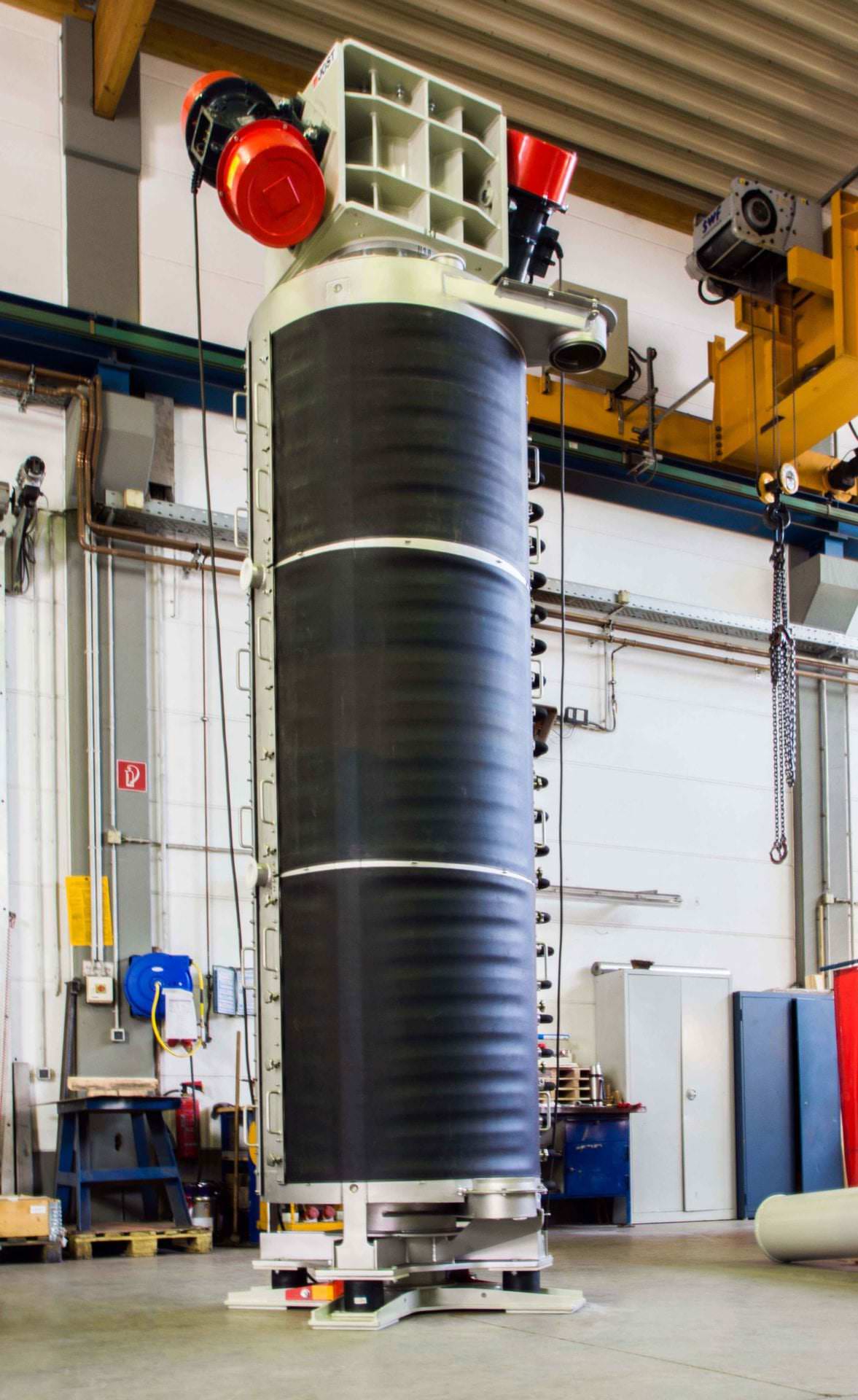

Spiral Elevator Example 1

Advantages

Spiral Cooler

Customizable to perfectly suit individual applications

Compact design

High levels of mechanical stability of the spiral due to welded plate

Low maintenance

Gentle, vertical conveyance

Simultaneous conveyance and thermal treatment

Efficient heat transfer

Combination of contact and convective heat transfer possible

Applications

Recycling
Recycling Icon
Plastics
Recycling Icon
Chemical products
Recycling Icon
Food
